RLink Standard

*** STX-RLink direct replacement ***
Programmer and debugger for 8-bit (STM8, ST7) and 32-bit ARM microcontrollers. Compiler / Debugger code size limitations apply.

Order : RLink-STD

130 €
* To order more than 4 of any single product, please contact Raisonance sales.

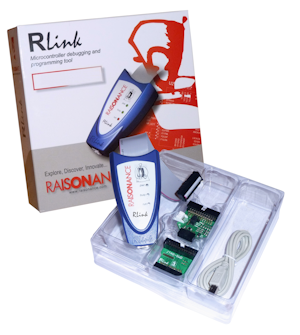

RLink Standard

RLink Standard provides unlimited programming of a full range of microcontrollers from 8-bit to 32-bit families and real-time debugging of applications while they run on the target device.

The RLink includes licenses for RKit-ARM (Lite) and RKit-STM8 (Basic) software tool sets, which include device support, C toolchain and enable debugging and programming features of Ride7 and RFlasher.

RLink connects to microcontrollers mounted on an application or evaluation board via a range of communication protocols including:

  • 20-pin JTAG for ARM® core-based devices
  • SWD connection for ARM Cortex-M3 devices
  • STMicroelectronics' SWIM for STM8
  • STMicroelectronics' In-Circuit Communication for ST7*

RLink offers unlimited programming of all supported 8-bit and 32-bit devices while driven by either the free RFlasher7 programming software or the Ride7 integrated development environment.

RLink provides unlimited debugging of applications on supported 8-bit devices while driven from the Ride7 integrated development environment. Programming of supported ARM core-based 32-bit devices is unlimited and debugging is limited to:

  • Debug 64 KB application code if microcontroller Flash is larger than 64KB
  • Debug equal to 1/2 Flash size if microcontroller Flash is 64 KB or less



STX-RLINK is the STMicroelectronics' part number for the Raisonance RLink-STD or "Standard". The two products are technically identical, support the same range of microcontrollers and the same performance characteristics using the same software packages.

For more than a decade Raisonance has provided the RLink to STMicroelectronics for resale as the STX-RLINK. ST has since discontinued this resale arrangement, but we continue to support and sell the RLink to support users of STM32 and STM8 microcontrollers. In addition, the RLink also supports legacy microcontrollers that are not supported by other programmer/debuggers such as the ST7*, STR7 and STR9 families of devices.


* Note: ST72C variants are not supported.
