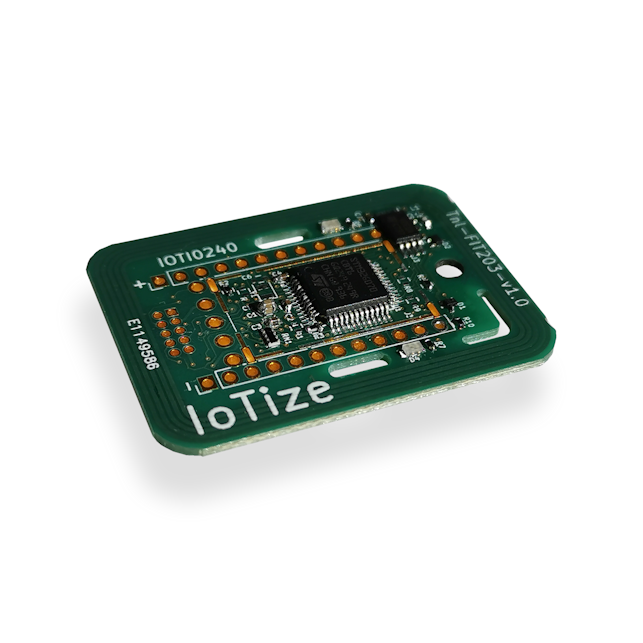

TapNLink NFC

TapNLink NFC (Type5) module for local connection of mobiles to microcontroller-based electronic systems.

Order : TnL-FIT203

The TapNLink Duetware-based NFC modules provide a contactless interface for linking mobile devices to equipment and appliances. Using TapNLink NFC 3-stroke configuration, users interact with appliances from an app on their mobile in three intuitive steps: 1) tap to retreive parameters, 2) modify them in the app, and 3) tap again to update parameters.

TapNLink connects directly to the target system's microcontroller. Thanks to TapNLink's power optimization and NFC Energy Harvesting, it can be powered entirely by a mobile device during NFC communication, or by the target system's power supply.

All TapNLink products are configured in minutes and without coding to allow users access to data in the target system. With our no-code/low-code App Creator environment, TapNLink facilitates rapid creation of Human Machine Interfaces (HMI) that run as Android, iOS and Web applications. These HMI apps are easily customized for different users and can be deployed and updated rapidly to keep pace with evolving system requirements and user needs.

Key Features

Wireless Channels

Near Field Communication (NFC) Type5 tag (ISO/IEC 15693) supporting
- Bi-directional proximity communication with mobiles
- Power by Energy Harvesting from the mobile

Supported Target Connections

Serial interface with Software Secure Serial Port (S3P) protocol
Serial interface with ARM SWD debug protocol
UART with Modbus protocol

Mobile Platform Support

App Creator and Builder (Android, iOS, Web apps)
HTML5, CSS (Android, iOS, Web apps)
Cordova API (Android, iOS, Windows 10) or Android native (Java)

Security

Configurable access profiles
Configurable, encrypted passwords
AES-128/256 module-level data encryption
Configurable secure pairing with NFC

Mechanical Charateristics

Dimensions: L 38mm x W 28mm x H 3mm

Packaging Options

Bare board (default)
Optional ABS plastic casing (IP44)
Optional silcone resin (IP65)

Electrical Characteristics

Input voltage: 2.3V to 3.6V
Typical Energy Harvesting*
Standby: 1 µA 0
Tx/Rx: 1 mA 0

* Up to 3 mA can be relayed to the target application during energy harvesting from an NFC mobile device.

Temperature Range

-20°C, +55°C

Compliance

CE (Europe), FCC (USA), IC (Canada).
REACH
RoHS
WEEE

Ordering Information

Base Part Number: TnL-FIT203
Unitary Price: contact us for pricing
MOQ: 10 modules
Prices include:
- TapNLink modules pre-qualified, pre-programmed and ready to configure
- IoTize Studio configuration and testing software
- IoTize Cloud MQTT infrastructure (open source)
